Description

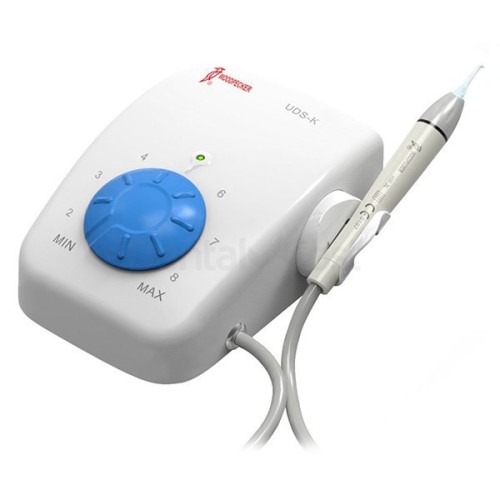

- UDS-K LED

• Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily.

• Digitally controlled, easy operation and more efficient for scaling.

- Detachable handpiece with light

• Shell of the handpiece is made of special imported plastic from America.

• Without cracking or deformation under the pressure.

• Detachable handpiece with light, better visibility.

- The main technical specifications:

• Power supply input: 220 - 240V~ 50Hz/60Hz 150mA

• Main unit input: 24V~ 50Hz/60Hz l.3A

• Output primary tip Vibration excursion: ≤100μm

• Output half_excursion force:<2N

• Output tip Vibration frequency: 28kHz±3kHz

• Output power: 3W to 20W

• Main unit fuse: Tl.6AL 250V

• Power supply fuse: T0.5AL 250V

• Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)

• Weight of main unit: 0.75kg

• Weight of power supply: 1 kg

• Operating mode: Continuous operation
