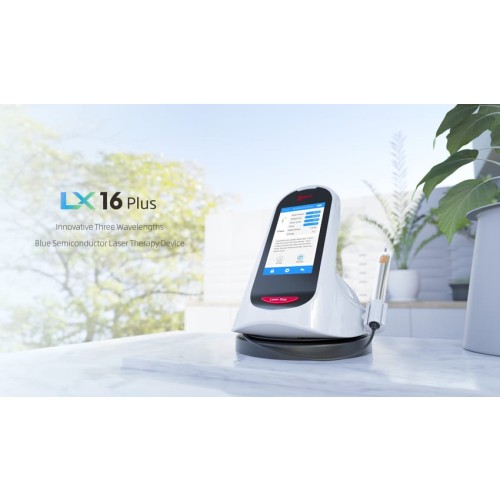

LX16 Plus

WOODPECKER

IQD 5250000

Availability: Out of stock

Description

Description:

Specifications
Wide scope of application
Intelligent human-machine interaction
Three wavelengths meet requirements of more treaments
Large-capacity battery
Effective prevention
Main technical parameters
-Power adapter input：100-240Vac，50/60Hz，2.5A
-Main unit input：15V 6.0A
-Wavelength and power:
a）976± 20nm ：  0.2W-4W(CW), Peak Power 5W
     chopped 1Hz to 20KHz
     chopped mode:5us – 0.9S
b）650± 20nm ：  25mW-200mW(CW)
c）450± 20nm：  0.2W-3W(CW)
     chopped 1Hz to 20KHz
     chopped mode:5us – 0.9S
-Laser classification:
a) 976 nm: Class 4
b) 650 nm: Class 2
c) 450 nm: Class 4
-Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
-Aiming beam:   650 ± 20 nm /Pmax<5mW
-Divergence:12.7°(According to IEC 60825-1: 2014)
-Rechargeable battery:   11.1V/2600mAh x2 (57.7Wh)
-Time consumption for charging: about 4h (5 hours for first charging)
-Diverging half angle: 0.22 mad/ 12.6 °
-size: 22 cm x 20cm x 23cm
-Weight: 1.5kg
